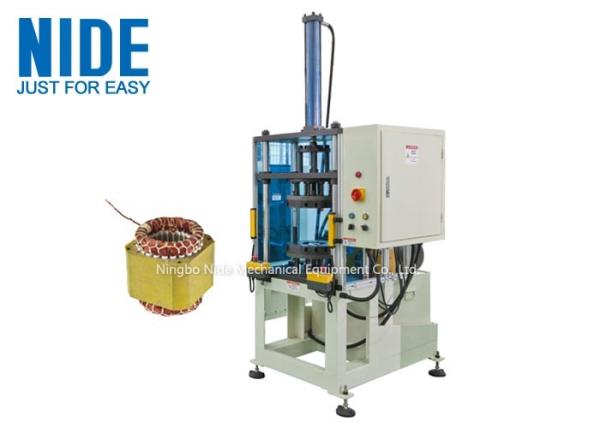

NIDE Full-automatic small stator coil final forming machine electric motor

Name: NIDE Fullautomatic small stator coil final forming machine electric motor
Brand: nide
Price: 1 USD

Wholesale NIDE Full-automatic small stator coil final forming machine electric motor from china suppliers

Brand Name : nide

Model Number : Z3XJ2-150-160T

Certification : none

Place of Origin : china

MOQ : 1 set

Price : negotiable

Supply Ability : 200 sets

Delivery Time : negotiable

Packaging Details : Wooden case suitable for sea transportation

Payment Terms : L/C, T/T

name : stator coil final forming machine

color : customize

stator ID : max 110mm

stator OD : max 160mm

stator length : max 150mm

Power : 380V/50/60HZ

dimension : 850*1000*2300mm

weight : 600kg

Contact Now

NIDE Full-automatic small stator coil final forming machine

(1) Technical data of stator final forming machine

Product Name	stator coil final forming machine
Stator ID	30~110mm
Stator OD	Max. 160mm
Stack length	20~150mm
Winding overhang range	15--50mm
Displacement of cylinder	20L/min
Power	380V/50/60HZ 1.5KW
Machine weight	about 600kg
Machine dimension	L850W1000H2300mm

(2) Application of stator final forming machine

The stator final forming mahcine is suitable for air conditioner motor, washing machine motor, compression motor, fan motor, generator motor and pump motor.

(3) Machine main function and characteristic of stator final forming machine

This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

Full-automatic forming machinery,forming machinery,coil forming machine uk,coil forming machine used
